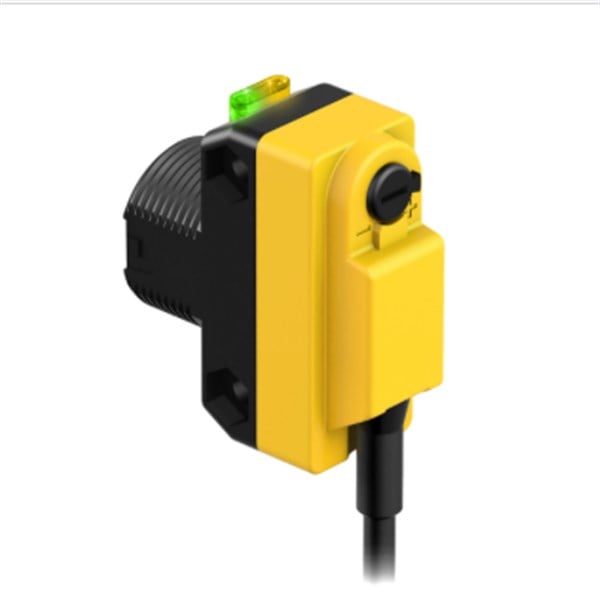

QS18VP6LP | QS18 Serisi Fotoelektrik Sensör
QS18VP6LP | QS18 Serisi Fotoelektrik Sensör
QS18VP6LP | QS18 Serisi Fotoelektrik Sensör

QS18VP6LP | QS18 Serisi Fotoelektrik Sensör (QS18VP6LP)

Marka : BANNER
İndirim Oranı : %28 İndirim
Fiyat : ₺1.000,00  + KDV
İndirimli : ₺725,00  + KDV
KDV Dahil : ₺855,50
₺102,90 'den başlayan taksitlerle

WORLD-BEAM: Polarized Retro

Range: 3.5 m; Input: 10-30V dc

Output: Complementary PNP

2 m (6.5 ft) Cable

Cable Length (m)
2
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Retroreflective
Sensing Mode (Detailed)
Polarized
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
ABS
Input/Output
Discrete
Max Sensing Distance (mm)
3500
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Connection
Cable
Quick Disconnect Type
No QD
Min Op. Temp. (°C)
-20
Operation
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
0.6
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
630
Delay at Power-up (ms)
100
Repeatability (µs)
150
Number of Pins
4
IP Rating
IP67
NEMA Rating
NEMA 6
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Barrel Diameter (mm)
18
Indicator
LEDs
Feature: Timing (Hold/Delay)
No
Feature: Encapsulated
No
Feature: Hazardous Area
No
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Quick Disconnect
No
DeviceNet
No
IO Link
No
EPLAN Cabinet Installable
No
